HP-Z30 Front Mount HP Z30

MOTOR MOUNT for Hyperion Z30 Series, or any other OutRunner motor in similar size with 19mm or 25mm mounting pattern and M3 screws.

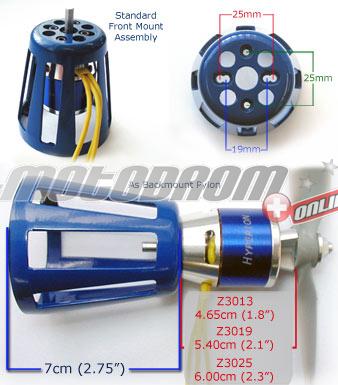

Powerful OutRunner motors require an very rigid mount. The HP-Z30-FRTMNT is made of rigid cast aluminum to provide the required stiffness. It weighs only 45 grams, and comes with full mounting hardware. Diameter at the base is 65mm, and diameter at the nose is 44mm. Intended for Hyperion Z30 Series motors, the mount has two sets of motor mounting holes with 25mm spacing, and one set with 19mm spacing. As such, it also fits virtually any OutRunner in the Z30 size class, such as AXI 28 series, Hacker A30, and others.

Includes:
1) Motor Mount
4) M3 x 12mm Allen-Head Screws (for mount > thick firewall)
4) M3 x 8mm Allen-Head Screws (for mount > thin firewall)
4) Nyloc M3 Nuts (for mount > firewall)
6) M3 x 5mm Allen-Head Screws (for motor, two spares)
